Dome 200

Dome 200
E-Lite

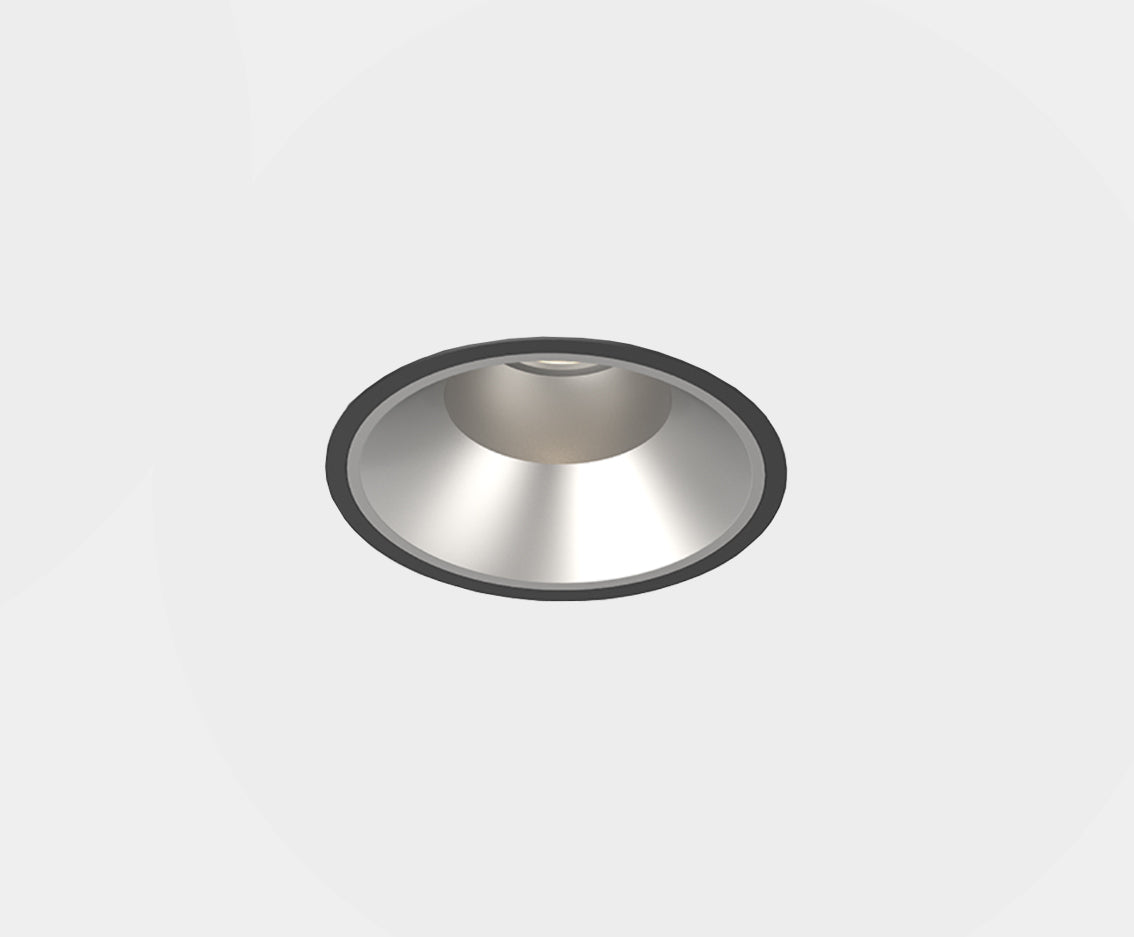

The Dome Series features a fixed downlight with a deep recessed LED module and interchangeable reflectors.


Add to wishlist


Product details

Power
25W, 38W, 52W

Lumen Output
Ranges from 2800Lm - 5600Lm

Colour Temperature
3000K, 4000K

Colour Rendering Index
CRI>80, CRI>90

Glare Rating
UGR<19

Beam Angle
18°, 30°, 60°

IP Rating
IP54

Dimming
No Dim, 1-10V, DALI, Phase

Dimensions
Ø218mm x D132mm

Colours
Black, Silver, White

Dome 200
Specifications

Code D200-25W-830-18 D200-25W-840-18 D200-25W-830-30 D200-25W-840-30 D200-25W-830-60 D200-25W-840-60 D200-38W-830-18 D200-38W-840-18 D200-38W-830-30 D200-38W-840-30 D200-38W-830-60 D200-38W-840-60 D200-52W-830-18 D200-52W-840-18 D200-52W-830-30 D200-52W-840-30 D200-52W-830-60 D200-52W-840-60
Power 25W 25W 25W 25W 25W 25W 38W 38W 38W 38W 38W 38W 52W 52W 52W 52W 52W 52W
Colour 3000K 4000K 3000K 4000K 3000K 4000K 3000K 4000K 3000K 4000K 3000K 4000K 3000K 4000K 3000K 4000K 3000K 4000K
Beam 18° 18° 30° 30° 60° 60° 18° 18° 30° 30° 60° 60° 18° 18° 30° 30° 60° 60°
Flux 3200Lm 3400Lm 3200Lm 3400Lm 2800Lm 3000Lm 4400Lm 4600Lm 4400Lm 4600Lm 3900Lm 4100Lm 5400Lm 5600Lm 5400Lm 5600Lm 4800Lm 5000Lm
Control No Dim, 1-10V, DALI, Phase No Dim, 1-10V, DALI, Phase No Dim, 1-10V, DALI, Phase No Dim, 1-10V, DALI, Phase No Dim, 1-10V, DALI, Phase No Dim, 1-10V, DALI, Phase No Dim, 1-10V, DALI, Phase No Dim, 1-10V, DALI, Phase No Dim, 1-10V, DALI, Phase No Dim, 1-10V, DALI, Phase No Dim, 1-10V, DALI, Phase No Dim, 1-10V, DALI, Phase No Dim, 1-10V, DALI, Phase No Dim, 1-10V, DALI, Phase No Dim, 1-10V, DALI, Phase No Dim, 1-10V, DALI, Phase No Dim, 1-10V, DALI, Phase No Dim, 1-10V, DALI, Phase
Finish Black, Silver, White Black, Silver, White Black, Silver, White Black, Silver, White Black, Silver, White Black, Silver, White Black, Silver, White Black, Silver, White Black, Silver, White Black, Silver, White Black, Silver, White Black, Silver, White Black, Silver, White Black, Silver, White Black, Silver, White Black, Silver, White Black, Silver, White Black, Silver, White
