Dot G
Dot G

Dot G
E-Lite

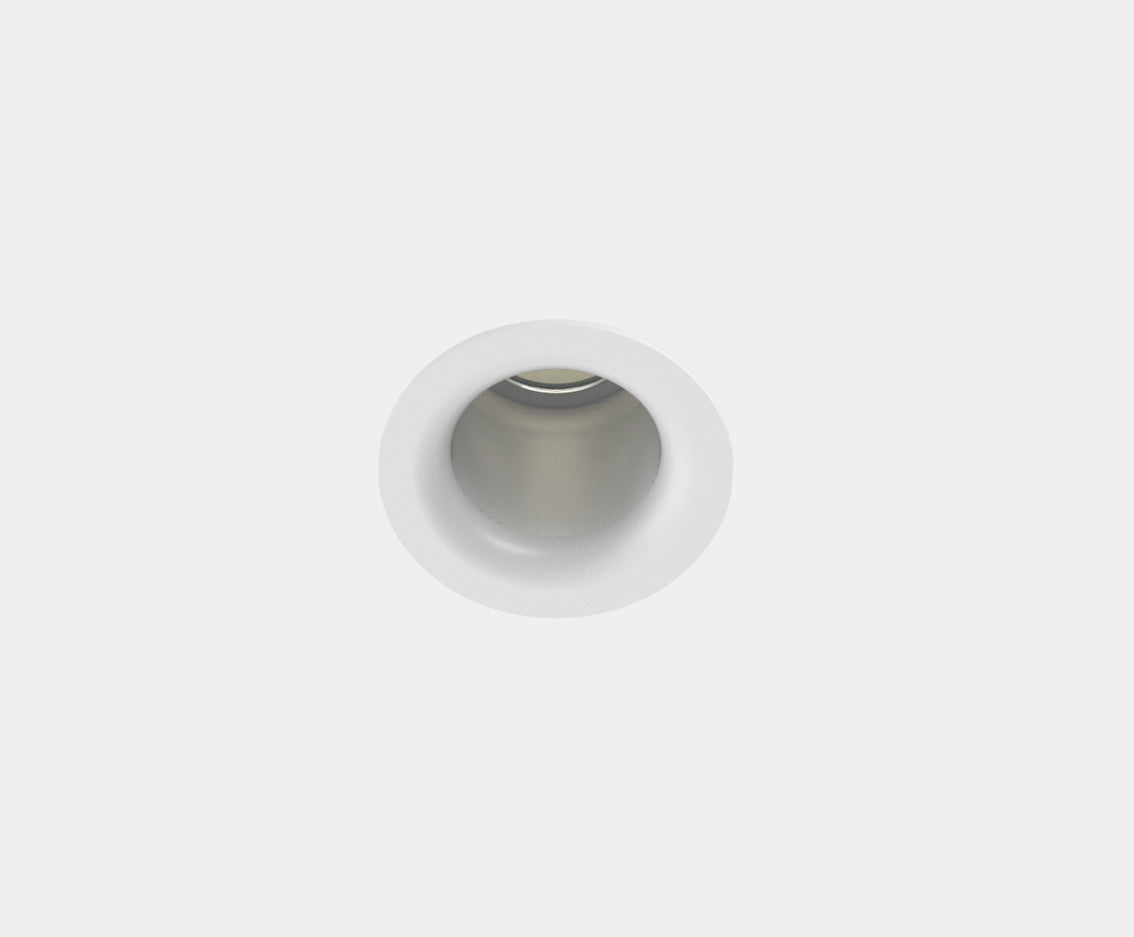

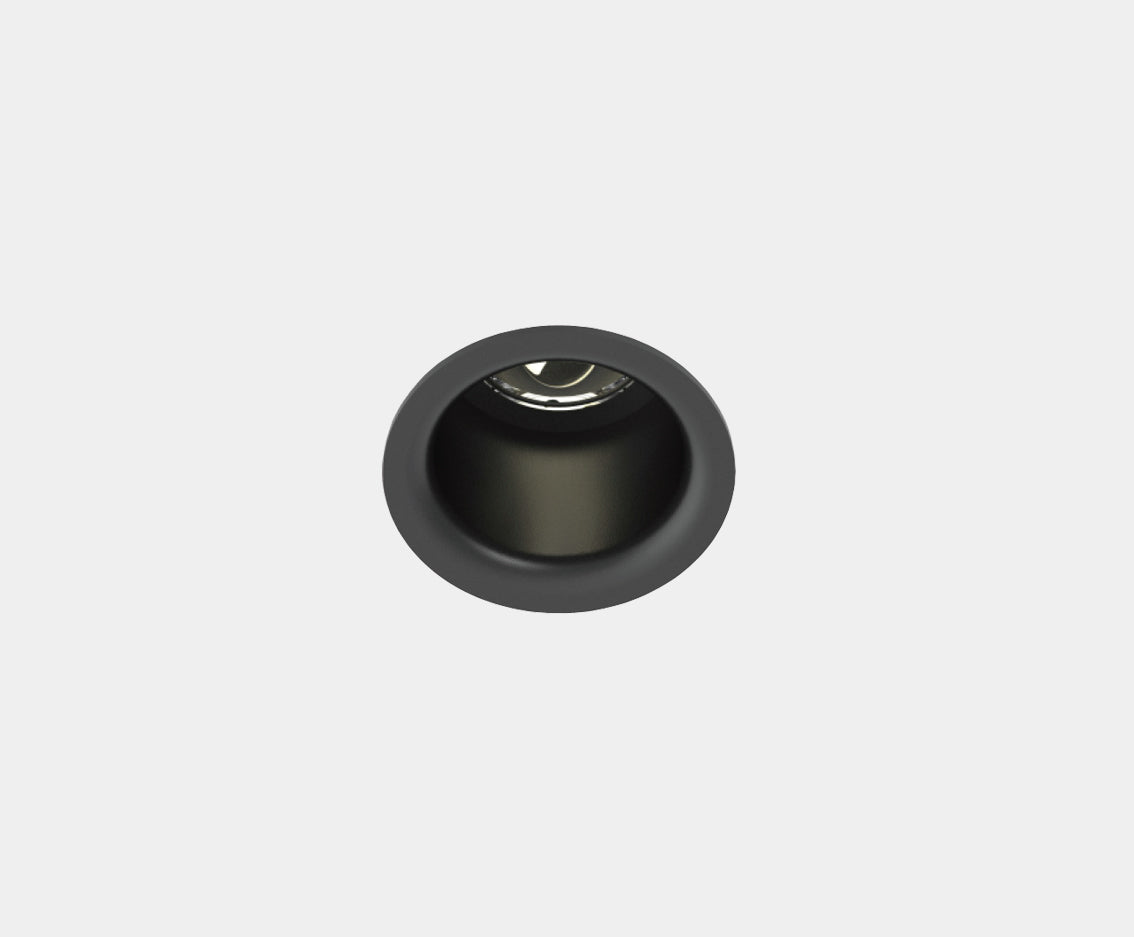

The Dot G has a soft curved compact design with a deep recessed LED module for glare control and visual comfort.


Add to wishlist


Product details

Power
2.5W, 6W

Lumen Output
110Lm, 420Lm

Colour Temperature
3000K, 4000K

Colour Rendering Index
CRI>80, CRI>90, MacAdam Step 3

Glare Rating
UGR<19

Beam Angle
18°, 30°

Dimming
No Dim

Material
Aluminium

Dimensions
Ø40.5mm x D52mm, Ø50.5mm x D62mm

Colours
Black, White

Dot G
Specifications

Code DOT35-G-830-18 DOT35-G-840-18 DOT35-G-830-30 DOT35-G-840-18 DOT45-G-830-30 DOT45-G-840-30
Power 2.5W 2.5W 2.5W 2.5W 6W 6W
Colour 3000K 4000K 3000K 4000K 3000K 4000K
Beam 18° 18° 30° 30° 30° 30°
Flux 110Lm 120Lm 110Lm 120Lm 420Lm 450Lm
Control No Dim No Dim No Dim No Dim No Dim No Dim
Finish Black, White Black, White Black, White Black, White Black, White Black, White
